第三方数据ASTRA : 18A1618SD

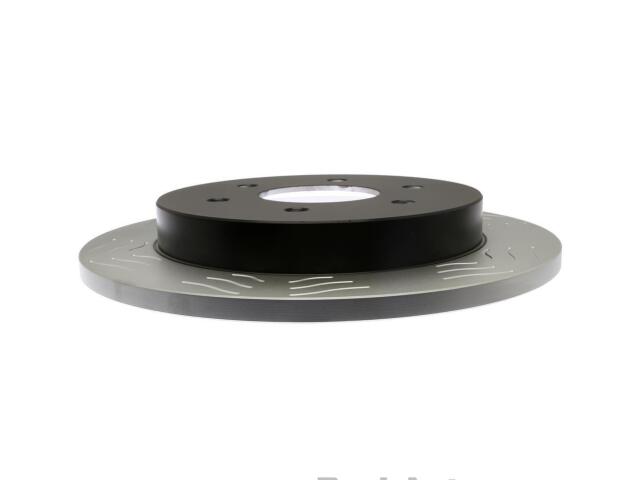

Rotor
ASTRA : 18A1618SD

Bolt Circle Diameter (IN): 5.5
Bolt Circle Diameter (MM): 139.7
Center Hole Diameter (IN): 3.232
Center Hole Diameter (MM): 82.1
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Bare
Discard Thickness (IN): 0.472
Discard Thickness (MM): 12
Height (IN): 2.28
Height (MM): 57.9
Inside Diameter (IN): 8.618
Inside Diameter (MM): 218.9
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Mounting Bolt Hole Diameter (IN): 0.539
Mounting Bolt Hole Diameter (MM): 13.7
Nominal Thickness (IN): 0.549
Nominal Thickness (MM): 13.95
Outside Diameter (IN): 12.581
Outside Diameter (MM): 319.55
Overall Height (IN): 2.28
Overall Height (MM): 57.9
Solid Or Vented Type Rotor: Solid

适用车型

NISSAN (2)

ARMADA (1)

TITAN (1)

INFINITI (1)

OE号码

品牌	号码
OE	1938363*
