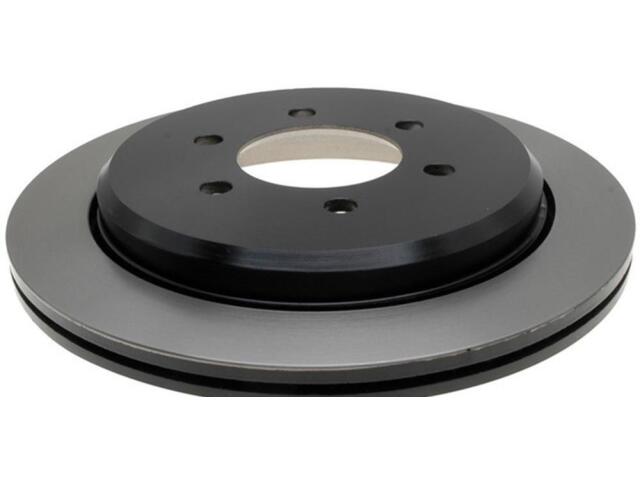

Rotor
ASTRA : 18A1588

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.3
Bolt Circle Diameter (MM): 135
Center Bore Diameter (IN): 3.5in
Center Bore Diameter (MM): 90mm
Center Hole Diameter (IN): 3.54
Center Hole Diameter (MM): 89.9
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Disc Finish: Turned
Discard Thickness (IN): 0.748
Discard Thickness (MM): 19
Hat Finish: Turned
Height (IN): 2
Height (MM): 51.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.315
Mounting Bolt Hole Circle Diameter (MM): 135
Mounting Bolt Hole Diameter (IN): 0.636
Mounting Bolt Hole Diameter (MM): 16.15
Nominal Thickness (IN): 0.865
Nominal Thickness (MM): 21.95
Outside Diameter (IN): 13.465
Outside Diameter (MM): 342
Overall Height (IN): 2.025
Overall Height (MM): 51.45
Overall Rotor Diameter (mm): 341.88mm
Pad Contact Surface Width (IN): 1.8
Pad Contact Surface Width (MM): 46.55
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	1917526*
