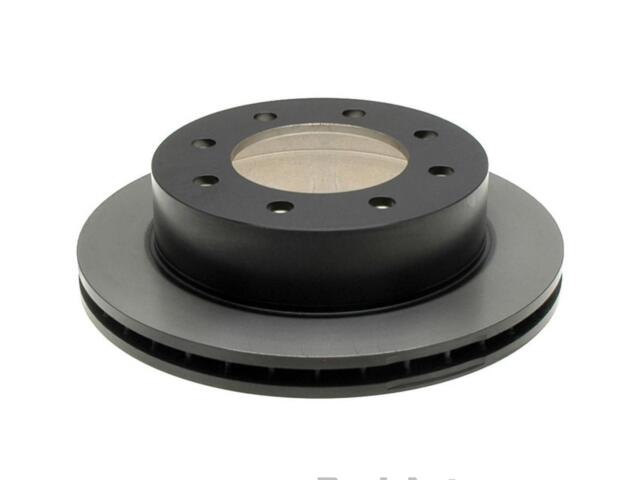

Rotor
ASTRA : 18A1586

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 6.5
Bolt Circle Diameter (MM): 165.1
Center Bore Diameter (IN): 4.6in
Center Bore Diameter (MM): 117.2mm
Center Hole Diameter (IN): 4.615
Center Hole Diameter (MM): 117.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Ground
Discard Thickness (IN): 1.043
Discard Thickness (MM): 26.5
Hat Finish: Turned
Height (IN): 3.4
Height (MM): 85.6
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 6.5
Mounting Bolt Hole Circle Diameter (MM): 165.1
Mounting Bolt Hole Diameter (IN): 6.5
Mounting Bolt Hole Diameter (MM): 165.1
Nominal Thickness (IN): 1.142
Nominal Thickness (MM): 29
Outside Diameter (IN): 12.99
Outside Diameter (MM): 329.95
Overall Height (IN): 3.37
Overall Height (MM): 85.6
Overall Rotor Diameter (mm): 329.95mm
Pad Contact Surface Width (IN): 1.9
Pad Contact Surface Width (MM): 48
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

CHEVROLET (2)

GMC (2)

OE号码

品牌	号码
OE	1917526*
