ASTRA
18A1585

第三方数据ASTRA : 18A1585

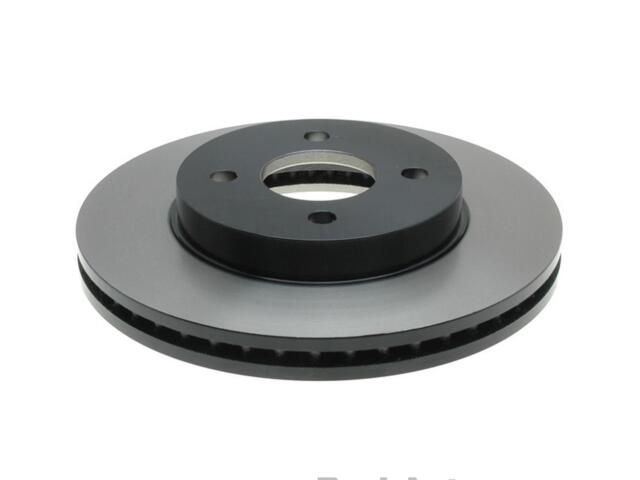

Rotor
ASTRA : 18A1585

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.9
Bolt Circle Diameter (MM): 100
Center Bore Diameter (IN): 2.4in
Center Bore Diameter (MM): 60.2mm
Center Hole Diameter (IN): 2.37
Center Hole Diameter (MM): 60.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.866
Discard Thickness (MM): 22
Hat Finish: Turned
Height (IN): 1.8
Height (MM): 46.7
Length (IN): 10.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.93
Mounting Bolt Hole Circle Diameter (MM): 99.8
Mounting Bolt Hole Diameter (IN): 0.546
Mounting Bolt Hole Diameter (MM): 13.85
Nominal Thickness (IN): 0.945
Nominal Thickness (MM): 24
Outside Diameter (IN): 10.08
Outside Diameter (MM): 256.05
Overall Height (IN): 1.84
Overall Height (MM): 46.75
Overall Rotor Diameter (mm): 256.03mm
Pad Contact Surface Width (IN): 2
Pad Contact Surface Width (MM): 50
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 13.2
Width (IN): 11.5

适用车型

CHEVROLET (1)

PONTIAC (3)

SATURN (1)

OE号码

品牌	号码
OE	1917526*
