ASTRA
18A1493

第三方数据ASTRA : 18A1493

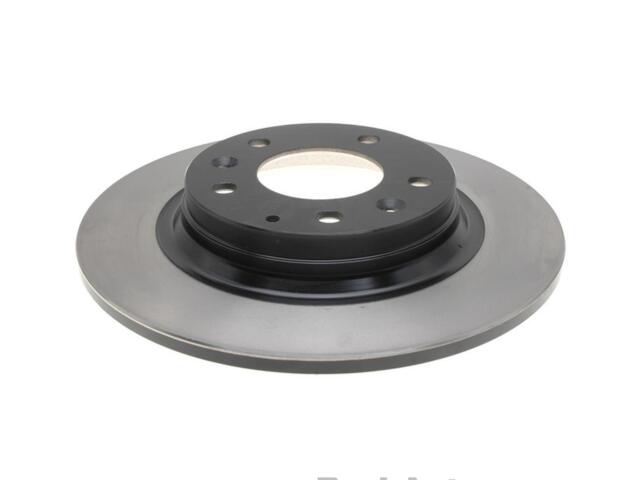

Rotor
ASTRA : 18A1493

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 72.1mm
Center Hole Diameter (IN): 2.84
Center Hole Diameter (MM): 72.15
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8
Hat Finish: Turned
Height (IN): 1.6
Height (MM): 39.9
Length (IN): 11.25
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.511
Mounting Bolt Hole Diameter (MM): 13
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10
Outside Diameter (IN): 11.015
Outside Diameter (MM): 279.8
Overall Height (IN): 1.57
Overall Height (MM): 39.9
Overall Rotor Diameter (mm): 279.65mm
Pad Contact Surface Width (IN): 1.8
Pad Contact Surface Width (MM): 44.65
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 8.8
Width (IN): 11.25

适用车型

FORD (1)

MAZDA (1)

6 (4)

LINCOLN (2)

MERCURY (1)

OE号码

品牌	号码
OE	1917526*
