ASTRA
18A1448

第三方数据ASTRA : 18A1448

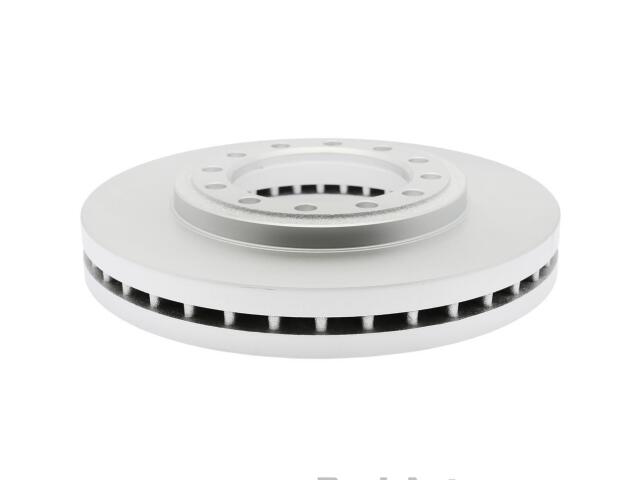

Rotor
ASTRA : 18A1448

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.4
Bolt Circle Diameter (MM): 136
Center Bore Diameter (IN): 4.3in
Center Bore Diameter (MM): 110mm
Center Hole Diameter (IN): 4.33
Center Hole Diameter (MM): 110
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Turned
Discard Thickness (IN): 1.457
Discard Thickness (MM): 37
Hat Finish: Turned
Height (IN): 2.3
Height (MM): 57.5
Length (IN): 12.38
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.354
Mounting Bolt Hole Circle Diameter (MM): 136
Mounting Bolt Hole Diameter (IN): 0.487
Mounting Bolt Hole Diameter (MM): 12.35
Nominal Thickness (IN): 1.575
Nominal Thickness (MM): 40
Outside Diameter (IN): 11.54
Outside Diameter (MM): 293.1
Overall Height (IN): 2.265
Overall Height (MM): 57.55
Overall Rotor Diameter (mm): 293.12mm
Pad Contact Surface Width (IN): 2.2
Pad Contact Surface Width (MM): 55.85
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 10
Width (IN): 12.38

适用车型

ISUZU (2)

NPR (3)

3.0L L4 DIESEL Turbocharged (8)

5.2L L4 DIESEL Turbocharged (15)

6.0L V8 (14)

REACH (1)

CHEVROLET (2)

LCF (4)

3.0L L4 DIESEL Turbocharged (2)

5.2L L4 DIESEL Turbocharged (7)

6.0L V8 (5)

6.6L V8 (4)

TILTMASTER (2)

GMC (1)

OE号码

品牌	号码
OE	1910717*

品牌	号码
OE	1917524*
