ASTRA
18A1423

第三方数据ASTRA : 18A1423

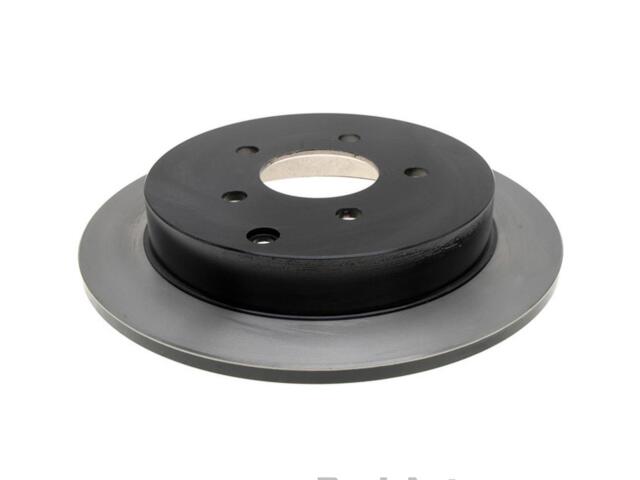

Rotor
ASTRA : 18A1423

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 115
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 70.7mm
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.354
Discard Thickness (MM): 9
Hat Finish: Turned
Height (IN): 1.8
Height (MM): 45.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.546
Mounting Bolt Hole Diameter (MM): 13.85
Nominal Thickness (IN): 0.435
Nominal Thickness (MM): 11.05
Outside Diameter (IN): 11.43
Outside Diameter (MM): 290.3
Overall Height (IN): 1.79
Overall Height (MM): 45.45
Overall Rotor Diameter (mm): 290.32mm
Pad Contact Surface Width (IN): 1.6
Pad Contact Surface Width (MM): 39.75
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

BUICK (1)

PONTIAC (1)

OE号码

品牌	号码
OE	1917523*
