ASTRA
18A1340SD

第三方数据ASTRA : 18A1340SD

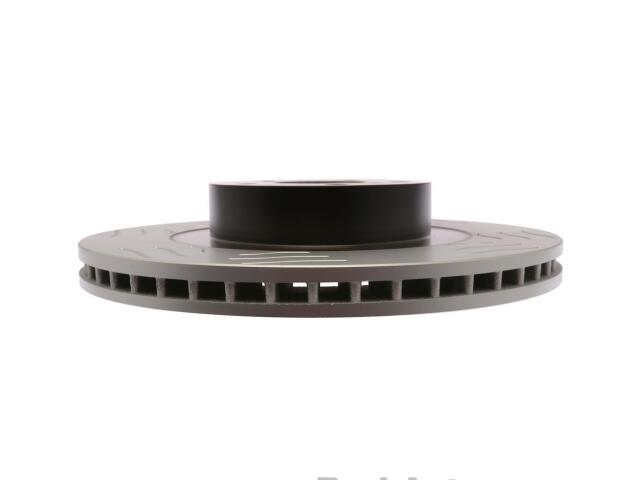

Rotor
ASTRA : 18A1340SD

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.9
Bolt Circle Diameter (MM): 100
Center Bore Diameter (IN): 2.3in
Center Bore Diameter (MM): 58mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 0.87
Discard Thickness (MM): 22.1
Hat Finish: Turned
Height (IN): 2.2
Height (MM): 56.6
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100.1
Nominal Thickness (IN): 0.95
Nominal Thickness (MM): 24.15
Outside Diameter (IN): 11.5
Outside Diameter (MM): 293.2
Overall Rotor Diameter (mm): 293.12mm
Pad Contact Surface Width (IN): 2.1
Pad Contact Surface Width (MM): 53.25
Rust Resistant Coating: Yes
Slotted: Yes
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

SUBARU (5)

IMPREZA (2)

BAJA (1)

FORESTER (2)

LEGACY (1)

OUTBACK (2)

SAAB (1)

OE号码

品牌	号码
OE	8887516*
