ASTRA
18A1336SD

第三方数据ASTRA : 18A1336SD

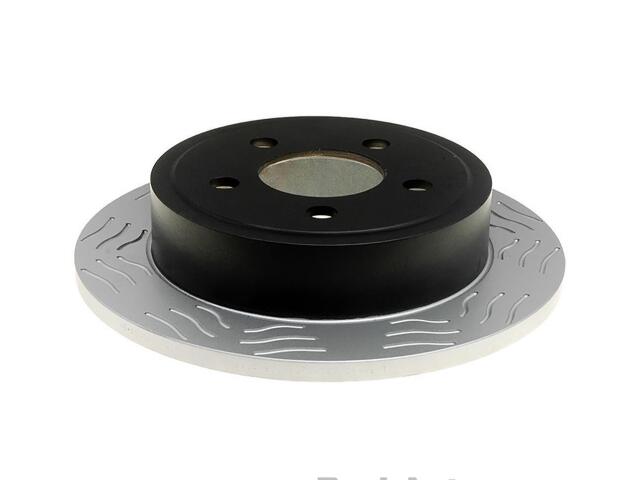

Rotor
ASTRA : 18A1336SD

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 72mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 0.43
Discard Thickness (MM): 10.9
Hat Finish: Turned
Height (IN): 2.3
Height (MM): 57.8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 11.95
Outside Diameter (IN): 11.2
Outside Diameter (MM): 285
Overall Rotor Diameter (mm): 284.99mm
Pad Contact Surface Width (IN): 1.8
Pad Contact Surface Width (MM): 44.6
Rust Resistant Coating: Yes
Slotted: Yes
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

JEEP (2)

OE号码

品牌	号码
OE	8887516*
