ASTRA
18A1336

第三方数据ASTRA : 18A1336

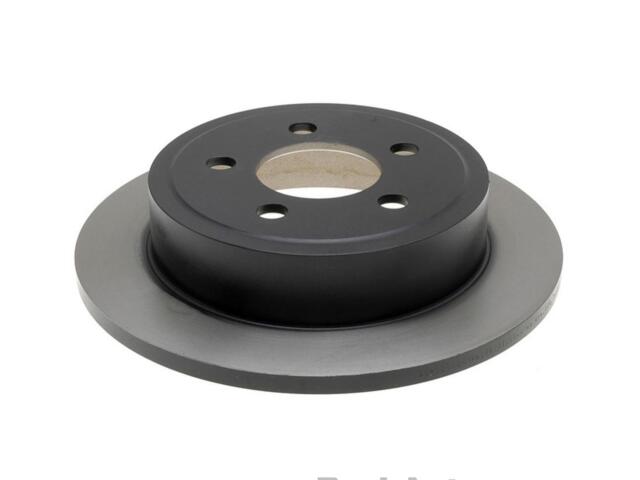

Rotor
ASTRA : 18A1336

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 72mm
Center Hole Diameter (IN): 2.84
Center Hole Diameter (MM): 72.15
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.433
Discard Thickness (MM): 11
Hat Finish: Turned
Height (IN): 2.3
Height (MM): 57.8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.651
Mounting Bolt Hole Diameter (MM): 16.55
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12
Outside Diameter (IN): 11.22
Outside Diameter (MM): 285
Overall Height (IN): 2.28
Overall Height (MM): 57.9
Overall Rotor Diameter (mm): 284.99mm
Pad Contact Surface Width (IN): 1.8
Pad Contact Surface Width (MM): 44.6
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

JEEP (2)

OE号码

品牌	号码
OE	1917522*
