第三方数据ASTRA : 18A1312SD

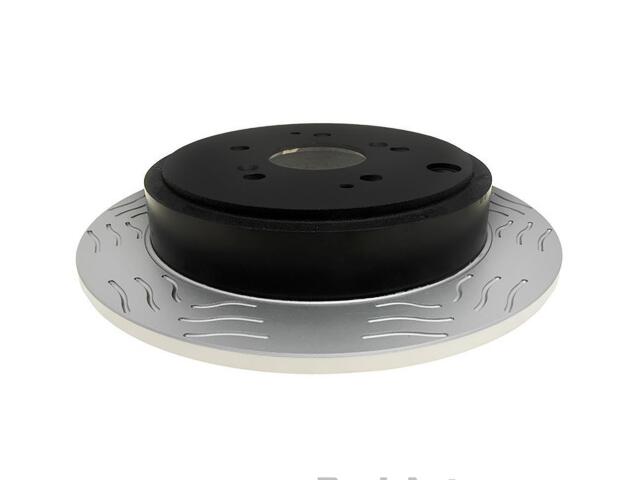

Rotor
ASTRA : 18A1312SD

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.5in
Center Bore Diameter (MM): 64.1mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Disc Finish: Turned
Discard Thickness (IN): 0.37
Discard Thickness (MM): 9.4
Hat Finish: Turned
Height (IN): 2.2
Height (MM): 55.8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 2.53
Mounting Bolt Hole Circle Diameter (MM): 64.25
Nominal Thickness (IN): 0.44
Nominal Thickness (MM): 11.2
Outside Diameter (IN): 12.3
Outside Diameter (MM): 313.2
Overall Rotor Diameter (mm): 313.18mm
Pad Contact Surface Width (IN): 1.7
Pad Contact Surface Width (MM): 42.8
Rust Resistant Coating: Yes
Slotted: Yes
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

HONDA (1)

ACURA (1)

OE号码

品牌	号码
OE	8887515*
