ASTRA
18A1115

第三方数据ASTRA : 18A1115

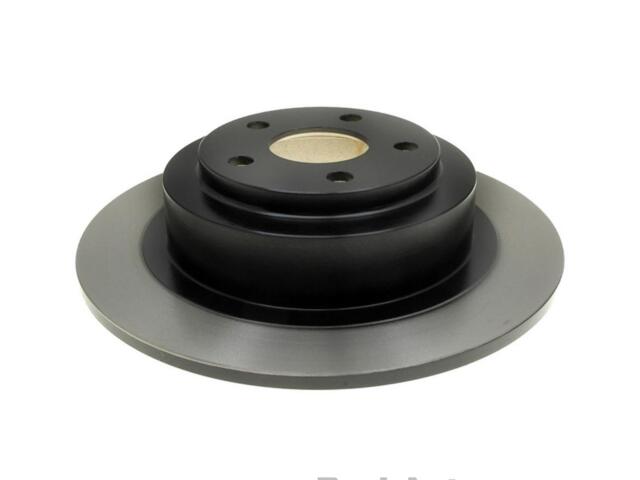

Rotor
ASTRA : 18A1115

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.9
Bolt Circle Diameter (MM): 100
Center Bore Diameter (IN): 2.3in
Center Bore Diameter (MM): 58mm
Center Hole Diameter (IN): 2.29
Center Hole Diameter (MM): 58.15
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.335
Discard Thickness (MM): 8.5
Hat Finish: Turned
Height (IN): 2.6
Height (MM): 67.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.93
Mounting Bolt Hole Circle Diameter (MM): 99.8
Mounting Bolt Hole Diameter (IN): 0.511
Mounting Bolt Hole Diameter (MM): 13
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10
Outside Diameter (IN): 11.4
Outside Diameter (MM): 289.55
Overall Height (IN): 2.65
Overall Height (MM): 67.3
Overall Rotor Diameter (mm): 289.56mm
Pad Contact Surface Width (IN): 1.5
Pad Contact Surface Width (MM): 37.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

SUBARU (1)

OE号码

品牌	号码
OE	1917516*

品牌	号码
OE	8892811*
