ASTRA
18A1104

第三方数据ASTRA : 18A1104

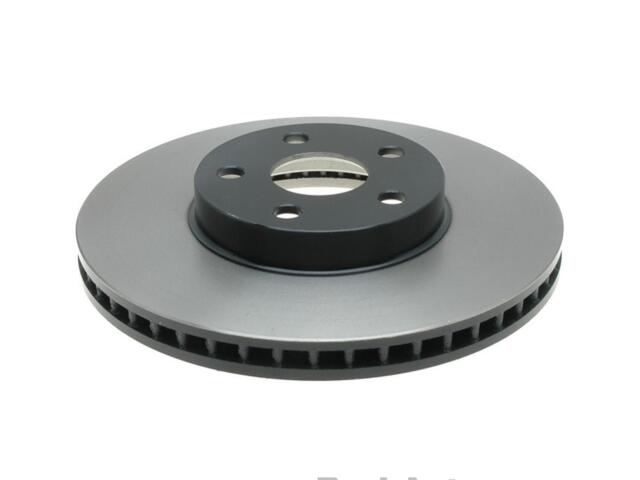

Rotor
ASTRA : 18A1104

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.9
Bolt Circle Diameter (MM): 100
Center Bore Diameter (IN): 2.2in
Center Bore Diameter (MM): 55mm
Center Hole Diameter (IN): 2.17
Center Hole Diameter (MM): 55.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23
Hat Finish: Turned
Height (IN): 1.9
Height (MM): 49.2
Length (IN): 11.2
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.93
Mounting Bolt Hole Circle Diameter (MM): 99.8
Mounting Bolt Hole Diameter (IN): 0.573
Mounting Bolt Hole Diameter (MM): 14.55
Nominal Thickness (IN): 0.985
Nominal Thickness (MM): 25
Outside Diameter (IN): 10.825
Outside Diameter (MM): 274.95
Overall Height (IN): 1.935
Overall Height (MM): 49.15
Overall Rotor Diameter (mm): 274.83mm
Pad Contact Surface Width (IN): 2.2
Pad Contact Surface Width (MM): 56.85
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 15.3
Width (IN): 11.2

适用车型

TOYOTA (3)

PONTIAC (1)

SCION (1)

OE号码

品牌	号码
OE	1917515*
