ASTRA
1771162

第三方数据ASTRA : 1771162

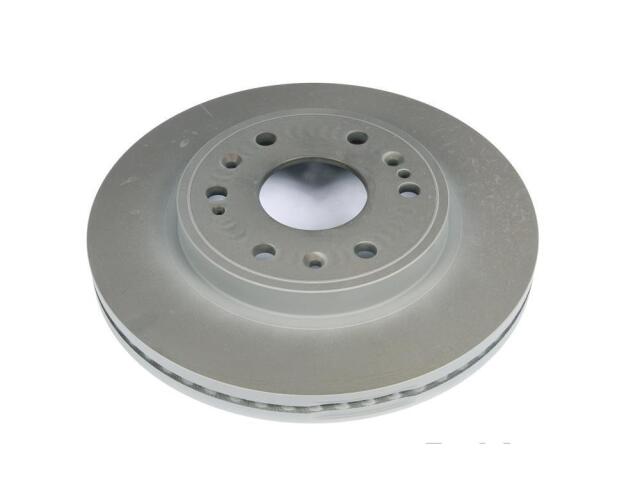

Rotor
ASTRA : 1771162

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.5
Bolt Circle Diameter (MM): 139.7
Center Hole Diameter (IN): 3
Center Hole Diameter (MM): 76
Construction: Full Cast
Disc Finish: Turned
Discard Thickness (IN): 1.102
Discard Thickness (MM): 28
Hat Finish: Coated
Height (IN): 2.1
Height (MM): 55.5
Material: Cast Iron
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.9
Outside Diameter (MM): 330
Overall Rotor Diameter (mm): 330mm
Pad Contact Surface Width (IN): 2.3
Pad Contact Surface Width (MM): 59
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	177-116*

品牌	号码
OE	2281835*
