ASTRA
13507431

第三方数据ASTRA : 13507431

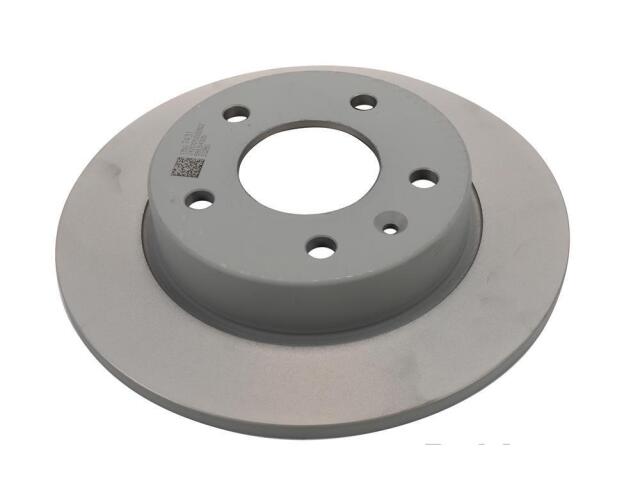

Rotor
ASTRA : 13507431

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.306
Bolt Circle Diameter (MM): 109.4
Construction: Full Cast
Height (IN): 0.65
Height (MM): 44
Inside Diameter (IN): 5.929
Inside Diameter (MM): 150.6
Length (IN): 2.05
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.52
Mounting Bolt Hole Circle Diameter (MM): 115
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10
Outside Diameter (IN): 10.394
Outside Diameter (MM): 264
Pad Contact Surface Width (IN): 1.714
Pad Contact Surface Width (MM): 43.5
Slotted: No
Solid Or Vented Type Rotor: Solid
Stud Thread Diameter (IN): 0.591
Stud Thread Diameter (MM): 15
Surface Type: Smooth
Weight (lb): 0.02
Width (IN): 1.15

适用车型

BUICK (1)

CHEVROLET (1)
