ASTRA
22896362

第三方数据ASTRA : 22896362

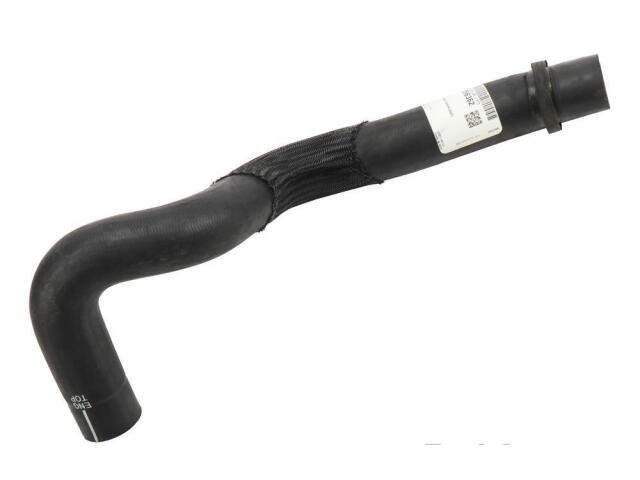

Radiator Hose
ASTRA : 22896362

Axis 1 Length (IN): 14.57
Axis 1 Length (MM): 370.09
Axis 2 Length (IN): 6.375
Axis 2 Length (MM): 161.92
Axis 3 Length (IN): 12.031
Axis 3 Length (MM): 305.6
Centerline Length (IN): 25.992
Centerline Length (MM): 660.21
Color: Black
Contains Spring: No
End 1 Inside Diameter (IN): 1.516
End 1 Inside Diameter (MM): 38.5
End 2 Inside Diameter (IN): 1.516
End 2 Inside Diameter (MM): 38.5
Height (IN): 5.9
Hose Shape: Molded Assembly
Length (IN): 17.5
Material: Rubber
Protective Sleeve Attached: Yes
Weight (lb): 1.44
Width (IN): 7.5

适用车型

ISUZU (2)

CHEVROLET (1)

HUMMER (2)

GMC (1)
