第三方数据HELLA : 007800111

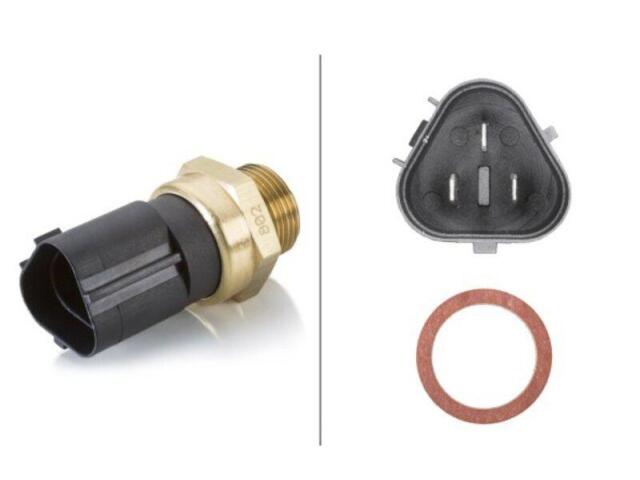

Radiator Fan Switch
HELLA : 007800111

  • Bolted
  • 3
  • Blade Terminal
  • 29
  • with double thermal switch
  • 87
  • 102
  • M 22 x 1,5
  • 12

适用车型

VOLKSWAGEN
BEETLE
1.8L L4 Turbocharged
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
1.9L L4 DIESEL Turbocharged
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2006
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2.0L L4
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
GL Model or GLS Model
1J0959481A
2.5L L5
2006
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2007
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2008
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2009
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2010
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
Base Model
1J0959481A
GOLF
1.8L L4 Turbocharged
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2006
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
1.9L L4 DIESEL Turbocharged
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2006
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2.0L L4
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2006
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2.8L V6
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
JETTA
1.8L L4 Turbocharged
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
1.9L L4 DIESEL Turbocharged
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
GL TDI or GLS TDI
1J0959481A
2.0L L4
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
TOUAREG
3.2L V6
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2006
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
4.2L V8
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2006
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
5.0L V10 DIESEL Turbocharged
2006
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
PHAETON
4.2L V8
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2006
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
6.0L W12
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2006
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
AUDI
TT
1.8L L4 Turbocharged
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
Base Model
1J0959481A
2006
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
Base Model
1J0959481A
3.2L V6
2005
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A
2006
12V; 3-Pin connector; Blade Terminal; Bolted; Dual Output/Normally Open Contact
1J0959481A

参考号

厂商 号码
ALTROM 00780011*
BWD AUTOMOTIVE TFS69*
BWD INTERMOTOR TFS69*
DELPHI TS1029*
FACET ENGINE MANAGEMENT 7.569*
FAE 3818*
FAE 38185*
厂商 号码
FEBI 3656*
IMPORT DIRECT IGNITION 17-147*
MASTER PRO IGNITION 17-147*
MEAT & DORIA 8270*
MTE-THOMSON 802.9*
ORIGINAL ENGINE MANAGEMENT 859*
SEAT 1J0 959 481 *
厂商 号码
STANDARD T-SERIES TS601*
VALEO 82003*
VALEO 82083*
VEMO V15-99-200*
VERNET TS278*
VERNET 278*
WERNER METZGER GMBH 091504*

OE号码

品牌 号码
AUDI 1J0959481*
品牌 号码
SKODA 1J0959481*
品牌 号码
VOLKSWAGEN 1J0959481*
