PM9145

第三方数据VDO / CONTINENTAL : PM9145

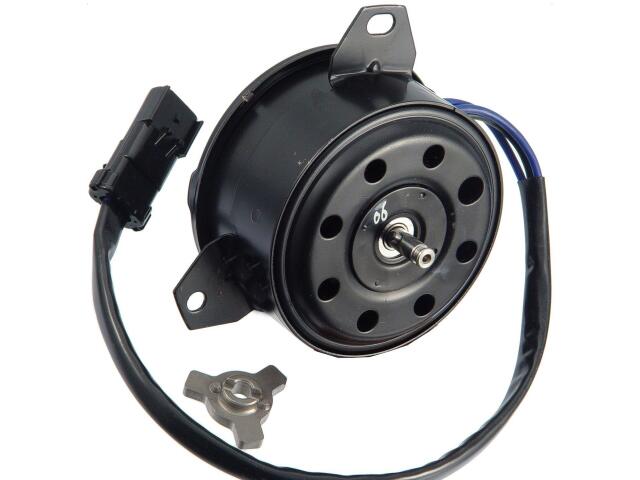

Radiator Fan Motor
VDO / CONTINENTAL : PM9145

Base Bolt Hole Center To Center (IN): NA
Connector Quantity: 1
External Fan Included: No
Hard Wired Or Plug In: Plug-in
Material: Metal
Motor Diameter (IN): 4.062
Motor Length (IN): 2.875
Motor Speed: Single
Motor Type: Vented
Mounting Base Length (IN): 2.437
Mounting Bolt Pattern Length (IN): 4.937
Mounting Flange to End of Case (IN): 1.5
Mounting Method: Flange Mounted
Rotation: Clockwise Shaft End
Shaft Diameter (IN): 0.312
Shaft Length (IN): 2.062
Terminal Gender: Male
Terminal Quantity: 3
Terminal Type: Blade
Voltage: 12

适用车型

CHRYSLER (1)

OE号码

品牌	号码
OE	5017407A*

品牌	号码
OE	5017407A*
