HAYDEN
3264

第三方数据HAYDEN : 3264

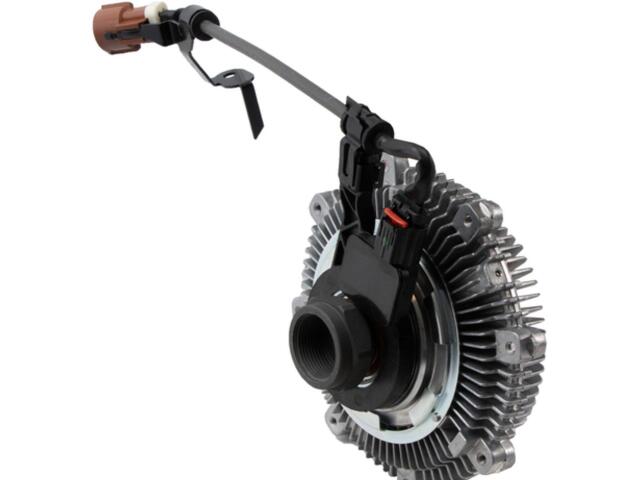

Radiator Fan Clutch
HAYDEN : 3264

Bolt Quantity: 4
Bolt Thread: M6 x 1.0 Hole
Clutch Maximum Diameter (IN): 7.73
Clutch Type: D - Severe Duty & Truck Fan Drive
Color: Raw Aluminum in Color
Description: Fan Clutches
Distance From Clutch To Mounting Flange (IN): 2.84
Drawing Type: D
Duty Rating: Electro-Viscous
Electronic Clutch?: Non Electronic
Fan Bolt Circle (IN): 7.01
Fan Bolt Circle (MM): 178.1
Fan Mount Dia. (IN): 6.45
Fan Mount Height (MM): 72.1
Material: Aluminum
Meets / Exceeds OEM?: Yes
Mount Dia. (IN): 1.86 (47mm) HEX
Mount Dia. (MM): 47 HEX
Mounting Hardware?: Not Included
Mounting Hole Quantity: 4
Mounting Type: Hex
New or Reman: New
O.E. Replacement?: Yes
Overall Dia. (MM): 196.3
Overall Height (MM): 96.3
Performance Rated?: Yes
Pilot Depth (IN): 0.81
Pilot Depth (MM): 20.6
Pilot Dia. (IN): M36x2.000
Rotation: REV
Style: Severe Duty
Type: Electronic
Wire Guage: Uses Original Equipment Connector
Wire Quantity: Uses Original Equipment Connector

适用车型

FORD (4)

LINCOLN (2)

OE号码

品牌	号码
OE	7L1Z8A616*
