HAYDEN
2738

第三方数据HAYDEN : 2738

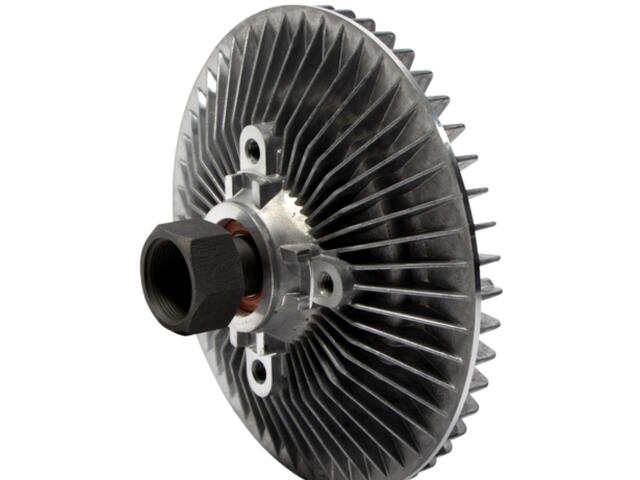

Radiator Fan Clutch
HAYDEN : 2738

Bolt Quantity: 4
Bolt Thread: M8 x 1.25 Hole
Clutch Maximum Diameter (IN): 7.2
Clutch Type: C - Heavy Duty
Color: Raw Aluminum in Color
Description: Fan Clutches
Distance From Clutch To Mounting Flange (IN): 1.5
Drawing Type: C
Duty Rating: Heavy
Electronic Clutch?: Non Electronic
Fan Bolt Circle (IN): 3.25
Fan Mount Dia. (IN): 2.62
Fan Mount Dia. (MM): 66.6
Fan Mount Height (MM): 38.1
Material: Aluminum
Meets / Exceeds OEM?: Yes
Mount Dia. (IN): 1.44 (36mm) HEX
Mount Dia. (MM): 36 HEX
Mounting Hardware?: Not Included
Mounting Hole Quantity: 4
Mounting Type: Hex
New or Reman: New
O.E. Replacement?: Yes
Overall Height (MM): 81.5
Performance Rated?: Yes
Pilot Depth (IN): 0.7
Pilot Dia. (IN): M30x1.500
Rotation: REV
Style: Heavy Duty
Type: Thermal

适用车型

JEEP (1)

OE号码

品牌	号码
OE	55056699A*

品牌	号码
OE	68085950A*
