FA70306

第三方数据VDO / CONTINENTAL : FA70306

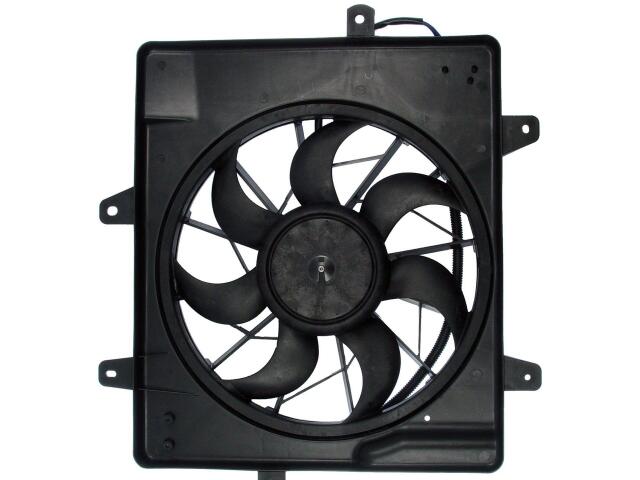

Radiator Fan Assembly
VDO / CONTINENTAL : FA70306

Airflow Rate: 2001.871
Amperage Rating: 15
Blade Material: Plastic/Metal
Blade Type: Curved S-Blade
Color: Black
Connector Quantity: 3
Connector Type: PLUG
Control Unit Included: No
Depth (IN): 3.39
Fan 1 Blade Quantity: 7
Fan 1 Diameter (IN): 16.25
Fan Rotation: Clockwise
Fan Type: Single
Hard Wired Or Plug In: Plug-in
Height (IN): 19.85
Material: Metal /Plastic
Mounting Bracket Included: No
Shroud Color: Black
Shroud Material: Plastic
Terminal Gender: Male, Female
Terminal Quantity: 12
Terminal Type: Blade, Spade
Voltage: 12
Width (IN): 22.39
Wiring Harness Included: No

适用车型

CHRYSLER (1)

OE号码

品牌	号码
OE	5179470A*
