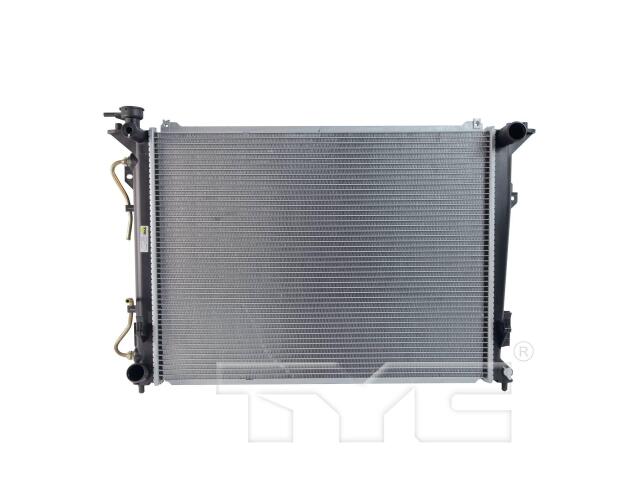

Radiator
TYC : 2832

Bottom Header: 1.97" x 19.45
Core Height (IN): 18.82
Core Length (IN): 25
Core Material: Aluminum
Core Thickness (IN): 0.87
Engine Oil Cooler Included: No
Fin Count (Every 4"): 68
Fin Wave Height (IN): 0.31
Find Wave Pitch: 3
Flow Configuration: Crossflow
Inlet Connection Type: Hose Clamp
Inlet Diameter (IN): 1.38
Number of Rows: 1
Outlet Connection Type: Hose Clamp
Outlet Diameter (IN): 1.38
TOC Distance (IN): 14.80
TOC Inlet Diameter (IN): 0.31
TOC Inlet Type: Tube fitting
TOC Outlet Diameter (IN): 0.31
TOC Outlet Type: Tube fitting
Top Header: 1.97" x 19.45
Total Fin Row Count: 48
Total Tube Count: 47
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Type: Concentric
Tube Count (Every 4"): 10
Tube Width x Height: 22x2

适用车型

HYUNDAI (2)

KIA (1)

参考号

厂商	号码
APDI	801283*
APDI	801283*
GLOBAL PARTS	2831*

厂商	号码
MURRAY HEAT TRANSFER	801283*
O'REILLY/MURRAY HEAT TRANSFER	801283*
PARTSLINK	HY301015*

厂商	号码
SPECTRA PREMIUM MOBILITY SOLUTIONS	CU283*
SPECTRA PREMIUM MOBILITY SOLUTIONS	CU283*

OE号码

品牌	号码
HYUNDAI	253103L29*
KIA	253103L29*

品牌	号码
OE	HY301015*

品牌	号码
OE	RA2832*
