TYC
2808

第三方数据TYC : 2808

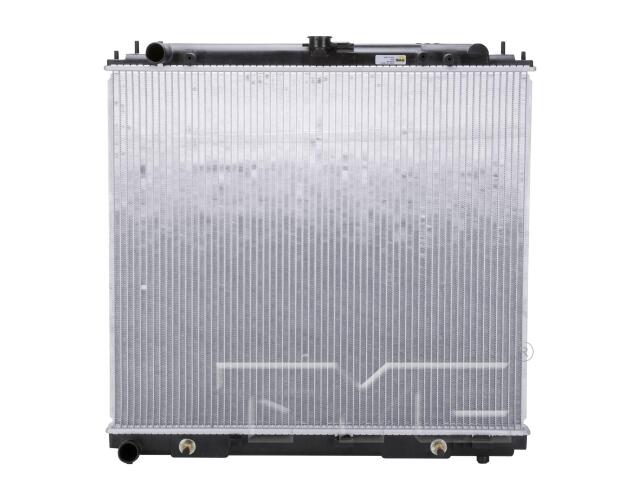

Radiator
TYC : 2808

Bottom Header: 2.38" x 28.21
Core Height (IN): 27.2
Core Length (IN): 23.62
Core Material: Aluminum
Core Thickness (IN): 0.63
Engine Oil Cooler Included: No
Fin Count (Every 4"): 64
Fin Wave Height (IN): 0.35
Find Wave Pitch: 3.2
Flow Configuration: Downflow
Inlet Connection Type: Hose Clamp
Inlet Diameter (IN): 1.38
Number of Rows: 1
Outlet Connection Type: Hose Clamp
Outlet Diameter (IN): 1.38
TOC Distance (IN): 16.73
Top Header: 2.38" x 28.21
Total Fin Row Count: 63
Total Tube Count: 62
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Type: Concentric
Tube Count (Every 4"): 10
Tube Width x Height: 16x2

适用车型

NISSAN (1)

参考号

厂商	号码
ADVANCE INTERCOOLER	43400*
ADVANCE/CARQUEST RADIATOR	43400*
APDI	801280*
AUTOZONE/DENSO	221-341*
CARQUEST RADIATOR	43400*
CSF COOLING	267*
CSF RADIATOR	267*
CSF RADIATOR	319*
DENSO	221-341*
GLOBAL PARTS	2808*

厂商	号码
MURRAY HEAT TRANSFER	43400*
MURRAY HEAT TRANSFER	801280*
NISSAN	21460-EA00*
NISSAN	21410-9BA1*
NISSAN	21410-EA00*
NISSAN	21460-9BA0*
O'REILLY/MURRAY HEAT TRANSFER	43400*
OR/MURRAY HEAT TRANSFER	43400*
PARTSLINK	NI301020*

厂商	号码
PRO-FIT BRAND	05-R280*
RAYBESTOS CHASSIS	CU280*
REACH COOLING	43400*
REACH COOLING	41-280*
SILLA COOLING	719*
SPECTRA PREMIUM MOBILITY SOLUTIONS	CU280*
SUNBELT RADIATORS INC	SBR280*
VISTA-PRO	43400*
VISTEON	850*

OE号码

品牌	号码
NISSAN	214609BA0*
OE	2808*
OE	NI301020*

品牌	号码
OE	RA2808*
NISSAN	21460-EA00*

品牌	号码
NISSAN	21410-9BA1*
NISSAN	21410-EA00*
