TYC
13393

第三方数据TYC : 13393

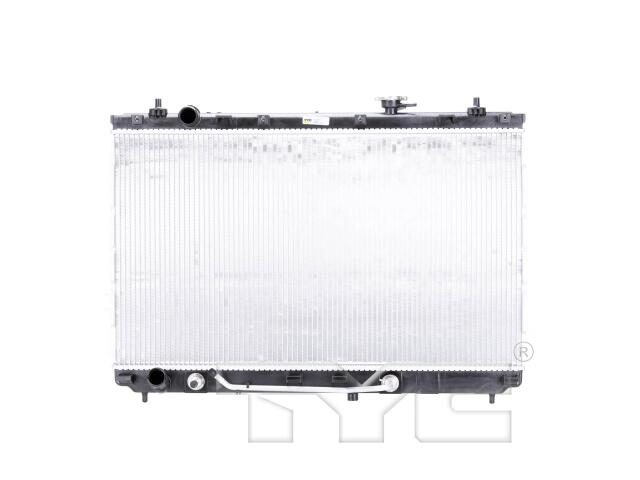

Radiator
TYC : 13393

Bottom Header: 1.94" x 30.96
Core Height (IN): 30.61
Core Length (IN): 17.32
Core Material: Aluminum
Core Thickness (IN): 0.71
Engine Oil Cooler Included: No
Fin Count (Every 4"): 73
Fin Wave Height (IN): 0.31
Find Wave Pitch: 2.8
Flow Configuration: Downflow
Inlet Connection Type: Hose Clamp
Inlet Diameter (IN): 1.38
Number of Rows: 1
Outlet Connection Type: Hose Clamp
Outlet Diameter (IN): 1.38
TOC Distance (IN): 14.57
TOC Inlet Diameter (IN): 0.39
TOC Inlet Type: Tube fitting
TOC Outlet Diameter (IN): 0.39
TOC Outlet Type: Tube fitting
Top Header: 1.94" x 30.96
Total Fin Row Count: 82
Total Tube Count: 81
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Type: PLATE
Tube Count (Every 4"): 11
Tube Width x Height: 18x1.5

适用车型

KIA (1)

参考号

厂商	号码
ADVANCE INTERCOOLER	81339*
ADVANCE/CARQUEST RADIATOR	81339*
APDI	801339*
CARQUEST RADIATOR	81339*
GLOBAL PARTS	13393*

厂商	号码
MURRAY HEAT TRANSFER	CU1339*
O'REILLY/MURRAY HEAT TRANSFER	801339*
OR/MURRAY HEAT TRANSFER	801339*
PARTSLINK	KI301014*
PRO-FIT BRAND	05-R1339*

厂商	号码
REACH COOLING	801339*
REACH COOLING	41-1339*
SPECTRA PREMIUM MOBILITY SOLUTIONS	CU1339*
SUNBELT RADIATORS INC	SBR1339*

OE号码

品牌	号码
OE	13393*
KIA	253104D97*

品牌	号码
OE	KI301014*

品牌	号码
OE	RA13393*
