TYC
13384

第三方数据TYC : 13384

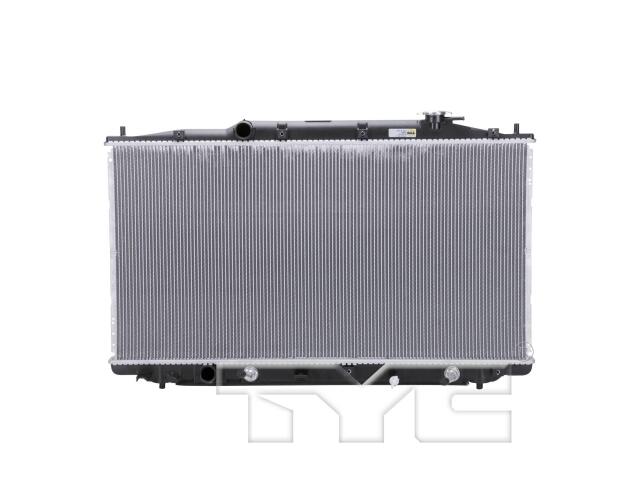

Radiator
TYC : 13384

Bottom Header: 2.02" x 31.37
Core Height (IN): 30.14
Core Length (IN): 15.75
Core Material: Aluminum
Core Thickness (IN): 1.02
Engine Oil Cooler Included: No
Fin Count (Every 4"): 85
Fin Wave Height (IN): 0.20
Find Wave Pitch: 2.4
Flow Configuration: Downflow
Inlet Connection Type: Hose Clamp
Inlet Diameter (IN): 1.26
Number of Rows: 1
Outlet Connection Type: Hose Clamp
Outlet Diameter (IN): 1.26
TOC Distance (IN): 14.76
TOC Inlet Diameter (IN): 0.31
TOC Inlet Type: Tube fitting
TOC Outlet Diameter (IN): 0.31
TOC Outlet Type: Tube fitting
Top Header: 2.02" x 31.37
Total Fin Row Count: 118
Total Tube Count: 117
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Type: PLATE
Tube Count (Every 4"): 16
Tube Width x Height: 26x1.5

适用车型

ACURA (1)

参考号

厂商	号码
APDI	801298*
GLOBAL PARTS	13384*

厂商	号码
PARTSLINK	AC301015*

厂商	号码
SPECTRA PREMIUM MOBILITY SOLUTIONS	CU298*

OE号码

品牌	号码
OE	13384*
ACURA (SEE HONDA)	19010R8AA5*

品牌	号码
OE	AC301015*

品牌	号码
OE	RA13384*
