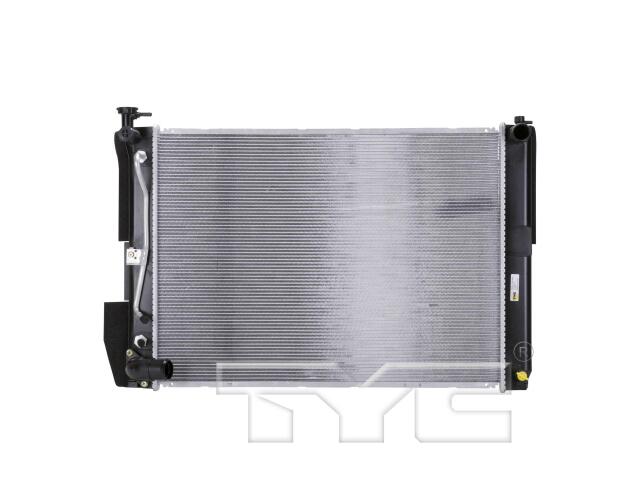

Radiator
TYC : 13256

Bottom Header: 1.71" x 20.06
Core Height (IN): 18.62
Core Length (IN): 25.59
Core Material: Aluminum
Core Thickness (IN): 0.87
Engine Oil Cooler Included: No
Fin Count (Every 4"): 78
Fin Wave Height (IN): 0.20
Find Wave Pitch: 2.6
Flow Configuration: Crossflow
Inlet Connection Type: Hose Clamp
Inlet Diameter (IN): 1.34
Number of Rows: 1
Outlet Connection Type: Hose Clamp
Outlet Diameter (IN): 1.56
TOC Distance (IN): 13.78
TOC Inlet Diameter (IN): 0.39
TOC Inlet Type: Tube fitting
TOC Outlet Diameter (IN): 0.39
TOC Outlet Type: Tube fitting
Top Header: 1.71" x 20.06
Total Fin Row Count: 73
Total Tube Count: 72
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Type: PLATE
Tube Count (Every 4"): 16
Tube Width x Height: 22x1.5

适用车型

LEXUS (1)

参考号

厂商	号码
ADVANCE INTERCOOLER	81325*
APDI	801325*
CARQUEST RADIATOR	81325*
DENSO	221-060*
GLOBAL PARTS	13256*

厂商	号码
MURRAY HEAT TRANSFER	CU1325*
OR/MURRAY HEAT TRANSFER	CU1325*
OR/MURRAY HEAT TRANSFER	801325*
PARTSLINK	LX301015*
PRO-FIT BRAND	05-R1325*

厂商	号码
REACH COOLING	41-1325*
REACH COOLING	CU1325*
REACH COOLING	801325*
SPECTRA PREMIUM MOBILITY SOLUTIONS	CU1325*
SUNBELT RADIATORS INC	SBR1325*

OE号码

品牌	号码
OE	13256*
LEXUS	160412031*

品牌	号码
TOYOTA	160412031*
OE	LX301015*

品牌	号码
OE	RA13256*
