TYC
13192

第三方数据TYC : 13192

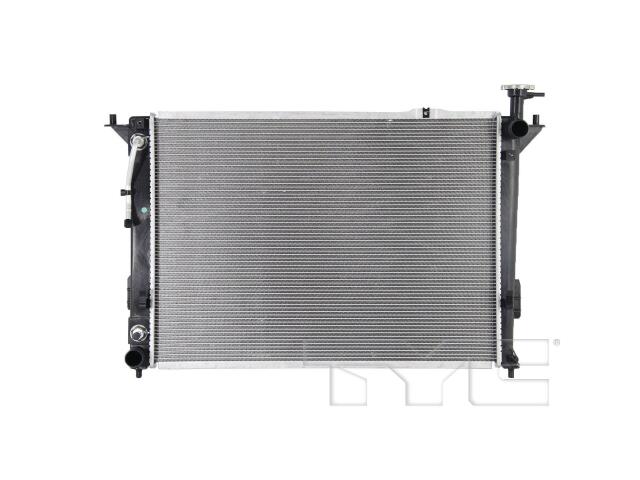

Radiator
TYC : 13192

Bottom Header: 1.83x19.31
Core Height (IN): 18.62
Core Length (IN): 26.38
Core Material: Aluminum
Core Thickness (IN): 0.63
Engine Oil Cooler Included: No
Fin Count (Every 4"): 78
Fin Wave Height (IN): 0.20
Find Wave Pitch: 2.6
Flow Configuration: Crossflow
Inlet Connection Type: Hose Clamp
Inlet Diameter (IN): 1.38
No. of Rows: 1
Outlet Connection Type: Hose Clamp
Outlet Diameter (IN): 1.38
TOC Distance (IN): 14.57
TOC Inlet Diameter (IN): 0.39
TOC Inlet Type: Tube fitting
TOC Outlet Diameter (IN): 0.39
TOC Outlet Type: Tube fitting
Top Header: 1.83x19.31
Total Fin Row Count: 73
Total Tube Count: 72
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Type: Plate Oil Cooler
Tube Count (Every 4"): 16
Tube Width x Height: 16X1.5

适用车型

HYUNDAI (1)

参考号

厂商	号码
DPI	1319*

厂商	号码
GLOBAL PARTS	13192*

厂商	号码
PARTSLINK	HY301017*

OE号码

品牌	号码
HYUNDAI	253101U20*
