第三方数据SPECTRA PREMIUM : 20013532

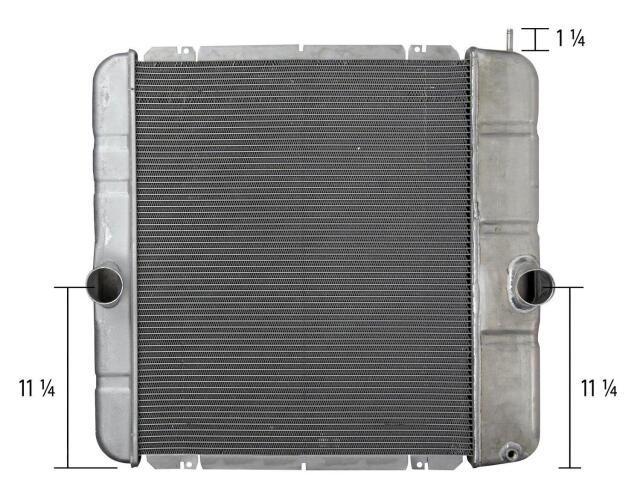

Radiator
SPECTRA PREMIUM : 20013532

  • No
  • Aluminum
  • 2
  • 2-1/4
  • No
  • Cross Flow
  • 20-1/2
  • 2-1/4
  • Yes
  • 2-1/4
  • Aluminum
  • No
  • 25-5/8

适用车型

FORD
F-650
5.9L L6 DIESEL Turbocharged
2005
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
2006
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
2007
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
6.0L V8 DIESEL Turbocharged
2005
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
2006
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
2007
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
7.2L L6 DIESEL Turbocharged
2005
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
2006
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
2007
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
F-750
5.9L L6 DIESEL Turbocharged
2005
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
2006
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
2007
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
6.0L V8 DIESEL Turbocharged
2005
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
2006
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
2007
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
7.2L L6 DIESEL Turbocharged
2005
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
2006
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
2007
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
INTERNATIONAL
4000 SERIES
6.0L V8 DIESEL Turbocharged
2005
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
2006
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
2007
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
DURASTAR
6.0L V8 DIESEL Turbocharged
2008
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
6.4L V8 DIESEL Turbocharged
2008
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA
7000 SERIES
7.6L L6 DIESEL Turbocharged
2006
Aluminum Tanks
w/ 20-1/2 in. x 25-5/8 in. x 2-1/4 in. Core; Inlet 2-1/4 in.; Outlet 2-1/4 in.; Inlet 14-1/2 in. From Top Left Corner; Outlet 14-1/2 in. From Top Right Corner; w/o Transmission Oil Cooler (Transmission Oil Cooler); No Frame Included; OEM Frame Must Be Reused.; May Require Use Of Provided Mounting Rubbers
4C4Z8005CA, 4C4Z8005EA, 4C4Z8005HA, 4C4Z8005MA

OE号码

品牌 号码
OE 4C4Z8005C*
OE 4C4Z8005E*
品牌 号码
OE 4C4Z8005H*
品牌 号码
OE 4C4Z8005M*
