OSC
2989

第三方数据OSC : 2989

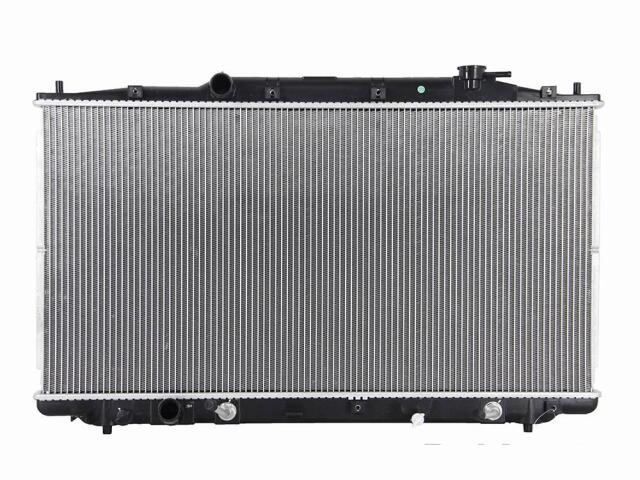

Radiator
OSC : 2989

Core Height (IN): 15 3/4
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 30 5/16
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 1/4
Inlet Header Length (IN): 31 3/8
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 1/4
Outlet Header Length (IN): 31 3/8
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 14 3/4
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 4

适用车型

HONDA (3)

OE号码

品牌	号码
OE	19010R70A5*

品牌	号码
OE	RAD298*
