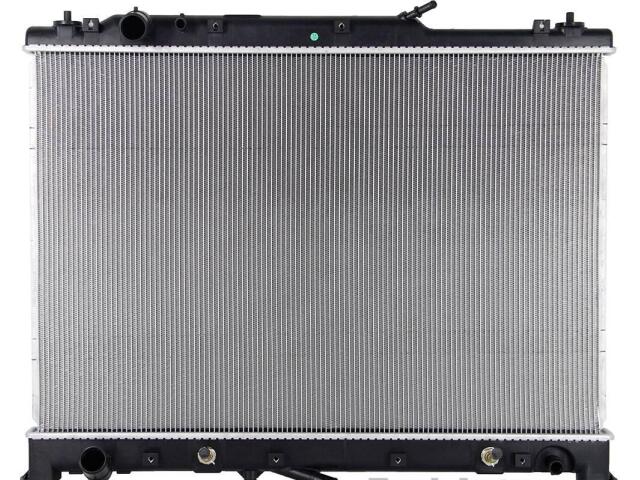

Radiator
OSC : 2985

Core Height (IN): 19 11/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 29 3/8
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/8
Inlet Header Length (IN): 30 5/8
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 3/8
Outlet Header Length (IN): 30 5/8
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1 1/8
Transmission Oil Cooler Distance between Fittings (IN): 14 3/4
Transmission Oil Cooler Included: Yes

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	CY0115200*

品牌	号码
OE	RAD298*
