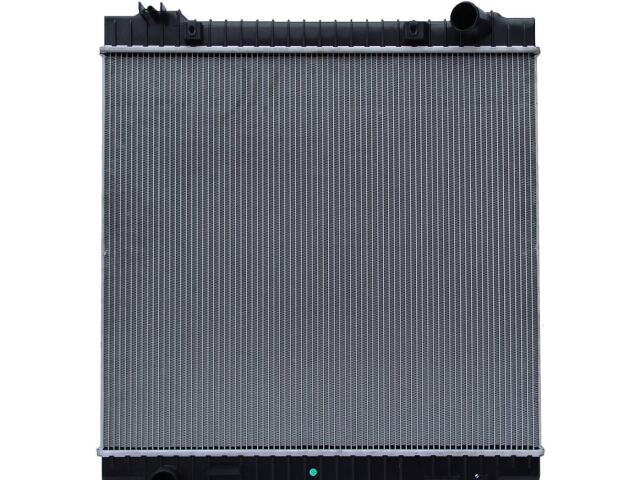

Radiator
OSC : 2976

Core Height (IN): 23 5/8
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1 9/16
Core Thickness (MM): 40
Core Width (IN): 25 3/4
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/4
Inlet Header Length (IN): 26 3/8
Inlet Header Width (IN): 3 3/16
Outlet Diameter (IN): 1 3/4
Outlet Header Length (IN): 26 3/8
Outlet Header Width (IN): 3 3/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 12
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 7

适用车型

FORD (2)

OE号码

品牌	号码
OE	6C2Z8005A*

品牌	号码
OE	6C2Z8005*

品牌	号码
OE	RAD297*
