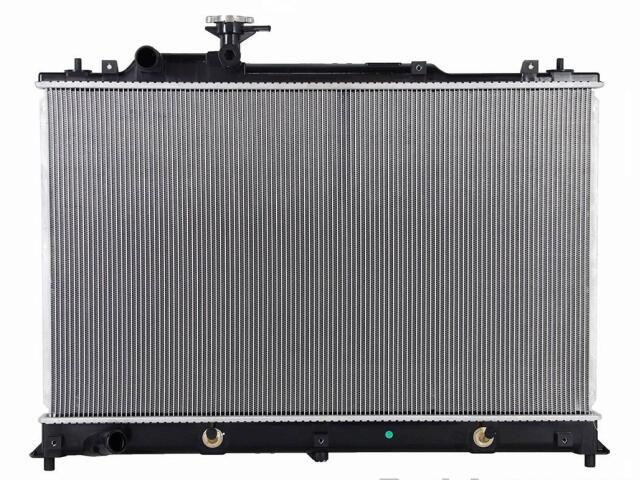

Radiator
OSC : 2918

Cap Included: w/ Cap - Micro 1.1
Core Height (IN): 17 11/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 29 3/8
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 1/4
Inlet Header Length (IN): 30 5/8
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 1/4
Outlet Header Length (IN): 30 5/8
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1 1/8
Transmission Oil Cooler Distance between Fittings (IN): 14 3/4
Transmission Oil Cooler Included: Yes

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	L33L1520*

品牌	号码
OE	L5551520*

品牌	号码
OE	RAD291*
