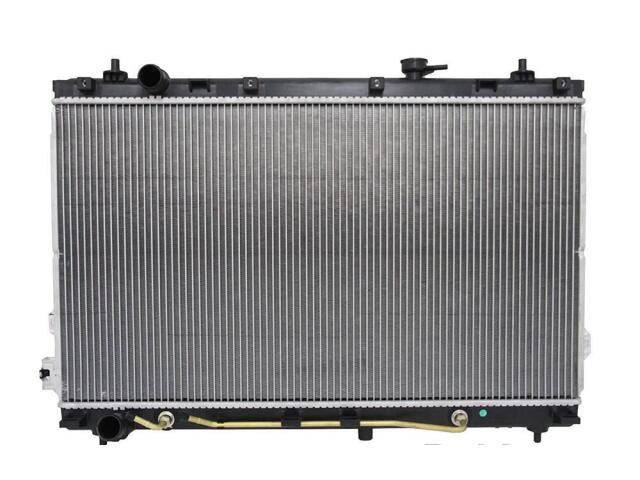

Radiator
OSC : 2898

Core Height (IN): 17 5/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 30 5/8
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/8
Inlet Header Length (IN): 30 15/16
Inlet Header Width (IN): 1 15/16
Outlet Diameter (IN): 1 3/8
Outlet Header Length (IN): 30 15/16
Outlet Header Width (IN): 1 15/16
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 7/8
Transmission Oil Cooler Distance between Fittings (IN): 17 3/8
Transmission Oil Cooler Included: Yes

适用车型

HYUNDAI (1)

KIA (1)

OE号码

品牌	号码
OE	253104D90*

品牌	号码
OE	RAD289*
