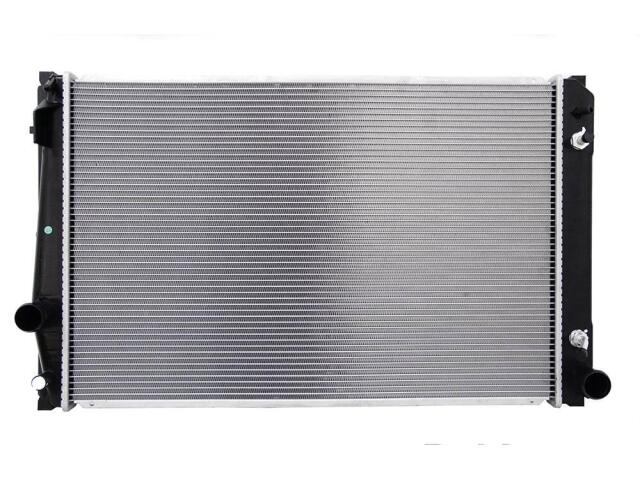

Radiator
OSC : 2893

Core Height (IN): 26 3/8
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 17 1/4
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 1/2
Inlet Header Length (IN): 17 9/16
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 1/2
Outlet Header Length (IN): 17 9/16
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 10 13/16
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 5

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	164000P24*

品牌	号码
OE	164003143*

品牌	号码
OE	RAD289*
