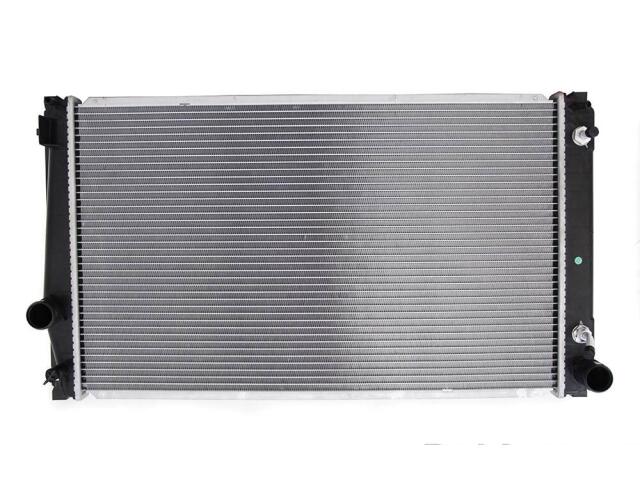

Radiator
OSC : 2892

Core Height (IN): 26 3/8
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 7/8
Core Thickness (MM): 22
Core Width (IN): 15 11/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 1/2
Inlet Header Length (IN): 16 7/8
Inlet Header Width (IN): 1 11/16
Outlet Diameter (IN): 1 1/2
Outlet Header Length (IN): 16 7/8
Outlet Header Width (IN): 1 11/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 10 13/16
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 4

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	164003142*

品牌	号码
OE	RAD289*
