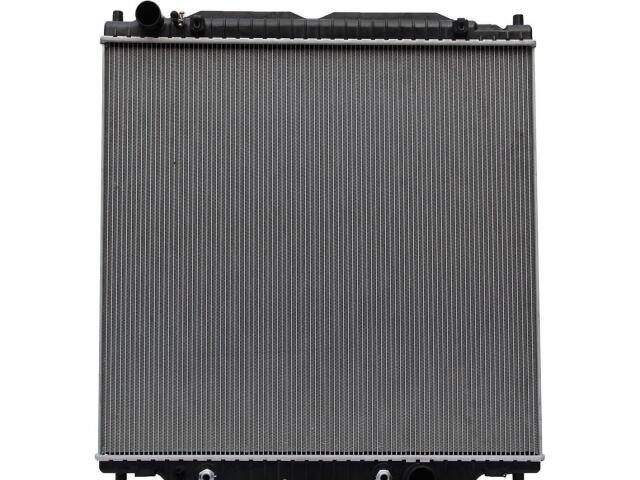

Radiator
OSC : 2887

Core Height (IN): 28 7/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1 9/16
Core Thickness (MM): 40
Core Width (IN): 30
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/4
Inlet Header Length (IN): 30 1/2
Inlet Header Width (IN): 3 1/8
Outlet Diameter (IN): 2
Outlet Header Length (IN): 30 1/2
Outlet Header Width (IN): 3 1/8
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 12
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 7

适用车型

FORD (5)

F-250 SUPER DUTY (2)

F-350 SUPER DUTY (2)

F-450 SUPER DUTY (2)

F-550 SUPER DUTY (2)

F59 (1)

OE号码

品牌	号码
OE	6C3Z8005D*

品牌	号码
OE	RAD288*
