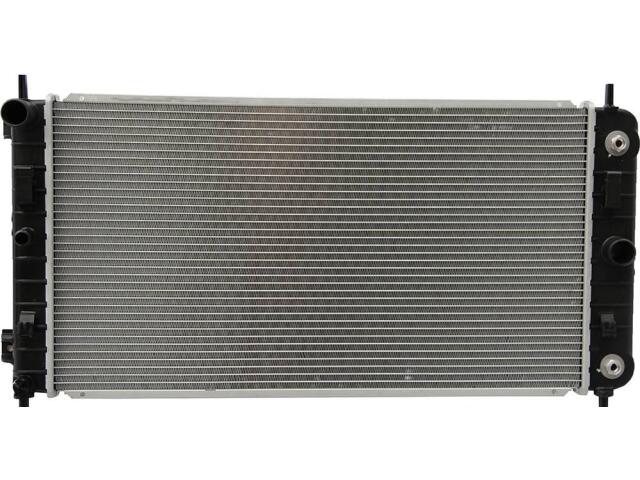

Radiator
OSC : 2851

Core Height (IN): 26 3/4
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 7/8
Core Thickness (MM): 22
Core Width (IN): 14 1/2
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 15 1/8
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 5/16
Outlet Header Length (IN): 15 1/8
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 11 1/2
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 3

适用车型

PONTIAC (1)

OE号码

品牌	号码
OE	RAD285*
