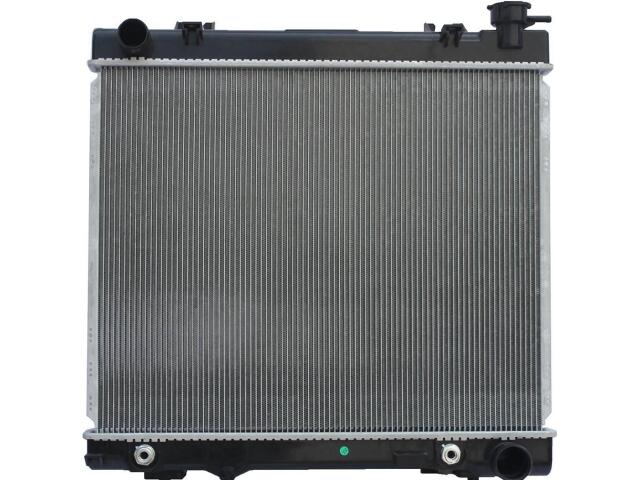

Radiator
OSC : 2847

Core Height (IN): 17 11/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 21 11/16
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 1/2
Inlet Header Length (IN): 23 1/16
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 3/4
Outlet Header Length (IN): 17 5/16
Outlet Header Width (IN): 3 1/8
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 14 3/4
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 8

适用车型

DODGE (1)

OE号码

品牌	号码
OE	52029262A*
OE	52029262A*

品牌	号码
OE	55029262A*
OE	55029262A*

品牌	号码
OE	RAD284*
