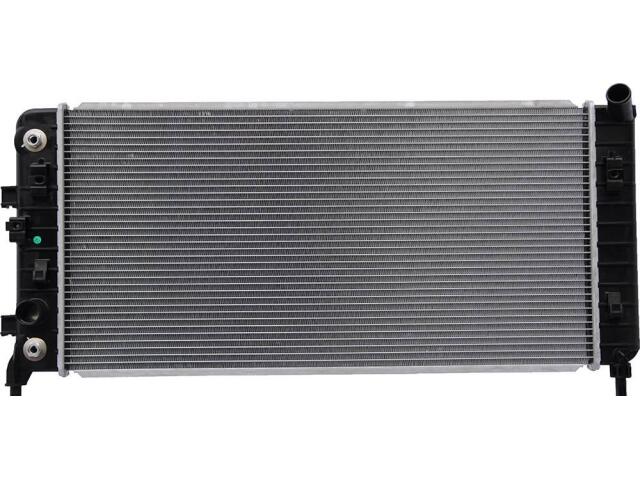

Radiator
OSC : 2827

Core Height (IN): 29 5/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 14 1/2
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 15 1/8
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 5/16
Outlet Header Length (IN): 15 1/8
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 11 1/2
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 4

适用车型

BUICK (2)

CHEVROLET (2)

OE号码

品牌	号码
OE	1034441*

品牌	号码
OE	RAD282*
