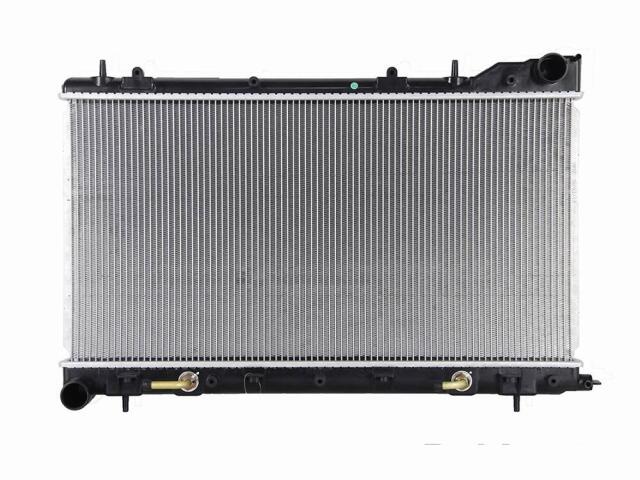

Radiator
OSC : 2812

Core Height (IN): 14 1/8
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 27 1/16
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 9/16
Inlet Header Length (IN): 28 3/16
Inlet Header Width (IN): 1 15/16
Outlet Diameter (IN): 1 9/16
Outlet Header Length (IN): 28 3/16
Outlet Header Width (IN): 2 3/8
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1 1/8
Transmission Oil Cooler Distance between Fittings (IN): 14 3/4
Transmission Oil Cooler Included: Yes

适用车型

SUBARU (1)

OE号码

品牌	号码
OE	45119SA00*

品牌	号码
OE	45119SA01*

品牌	号码
OE	RAD281*
