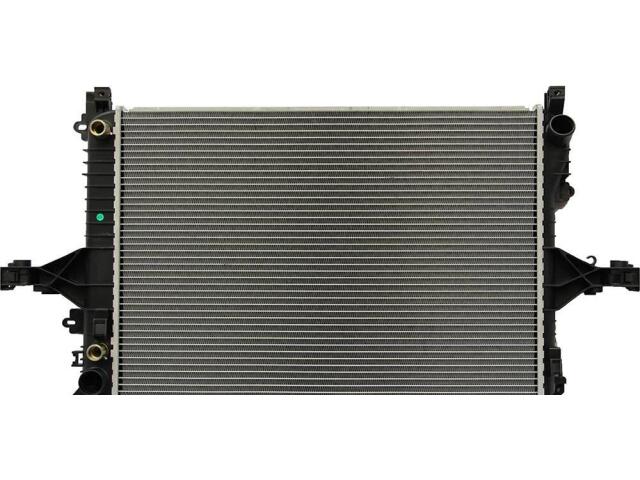

Radiator
OSC : 2805

Core Height (IN): 24 7/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1 9/16
Core Thickness (MM): 40
Core Width (IN): 16 7/8
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 1/2
Inlet Header Length (IN): 17 9/16
Inlet Header Width (IN): 2 5/16
Outlet Diameter (IN): 1 1/2
Outlet Header Length (IN): 17 9/16
Outlet Header Width (IN): 2 5/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 13
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 6

适用车型

VOLVO (4)

S60 (3)

V70 (3)

S80 (2)

XC70 (1)

OE号码

品牌	号码
OE	3131905*

品牌	号码
OE	31319056*

品牌	号码
OE	RAD280*
