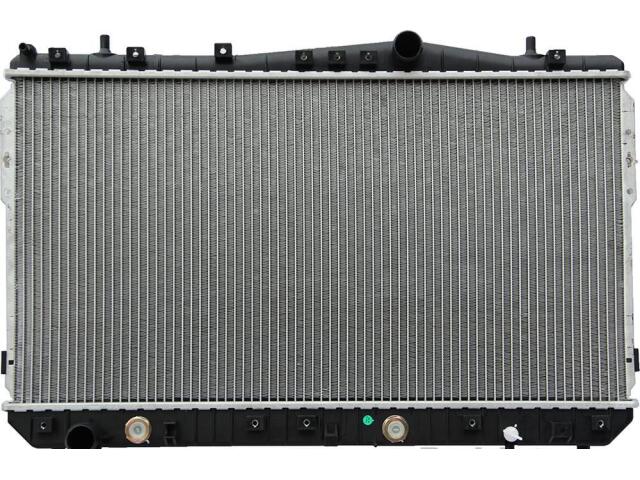

Radiator
OSC : 2788

Core Height (IN): 14 9/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 27 1/2
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 28 3/8
Inlet Header Width (IN): 1 15/16
Outlet Diameter (IN): 1 1/4
Outlet Header Length (IN): 28 3/8
Outlet Header Width (IN): 2 3/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 11 1/2
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 4

适用车型

SUZUKI (2)

CHEVROLET (1)

OE号码

品牌	号码
OE	1770085Z0*

品牌	号码
OE	9655337*

品牌	号码
OE	RAD278*
