第三方数据OSC : 2776

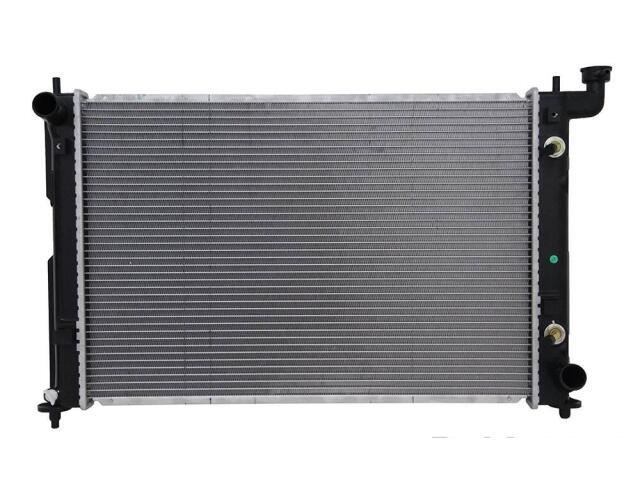

Radiator
OSC : 2776

Core Height (IN): 23 5/8
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 15 11/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 17
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 5/16
Outlet Header Length (IN): 17
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1
Transmission Oil Cooler Distance between Fittings (IN): 9 13/16
Transmission Oil Cooler Included: Yes

适用车型

SCION (1)

OE号码

品牌	号码
OE	164002217*

品牌	号码
OE	RAD277*
