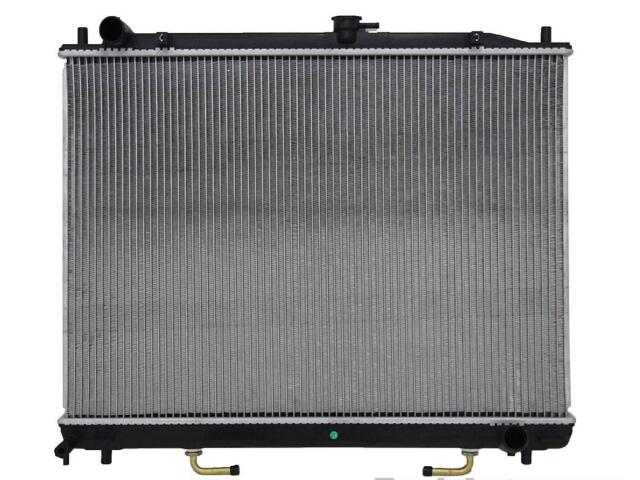

Radiator
OSC : 2752

Core Height (IN): 19 11/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 7/8
Core Thickness (MM): 22
Core Width (IN): 27 1/2
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/8
Inlet Header Length (IN): 28 7/16
Inlet Header Width (IN): 1 11/16
Outlet Diameter (IN): 1 3/8
Outlet Header Length (IN): 28 7/16
Outlet Header Width (IN): 2 1/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 15 3/8
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 6

适用车型

MITSUBISHI (1)

OE号码

品牌	号码
OE	MR99303*

品牌	号码
OE	RAD275*
