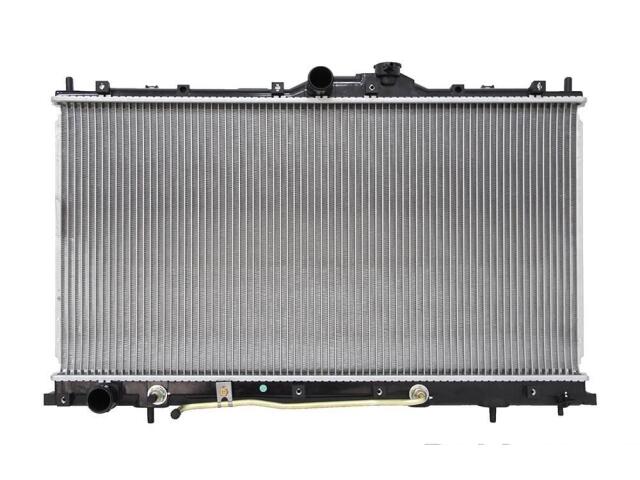

Radiator
OSC : 2723

Core Height (IN): 15 3/4
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 29 13/16
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 7/16
Inlet Header Length (IN): 30 5/8
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 7/16
Outlet Header Length (IN): 30 5/8
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1 1/8
Transmission Oil Cooler Distance between Fittings (IN): 14 3/4
Transmission Oil Cooler Included: Yes

适用车型

MITSUBISHI (1)

OE号码

品牌	号码
OE	1350A07*
OE	1350A07*

品牌	号码
OE	MR57107*
OE	MR57107*

品牌	号码
OE	RAD272*
