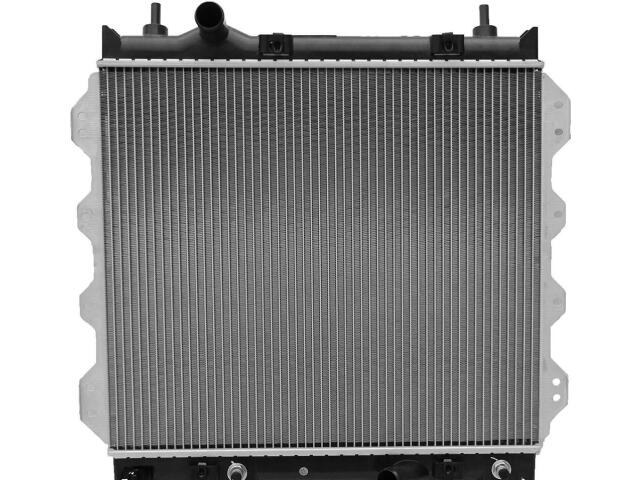

Radiator
OSC : 2679

Core Height (IN): 18 1/8
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 20 13/16
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 20 15/16
Inlet Header Width (IN): 2 1/8
Outlet Diameter (IN): 1 3/8
Outlet Header Length (IN): 20 15/16
Outlet Header Width (IN): 2 1/8
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1
Transmission Oil Cooler Distance between Fittings (IN): 12 13/16
Transmission Oil Cooler Included: Yes

适用车型

CHRYSLER (1)

OE号码

品牌	号码
OE	5017404A*
OE	5017404A*

品牌	号码
OE	5086547A*
OE	5086547A*

品牌	号码
OE	RAD267*
