第三方数据OSC : 2671

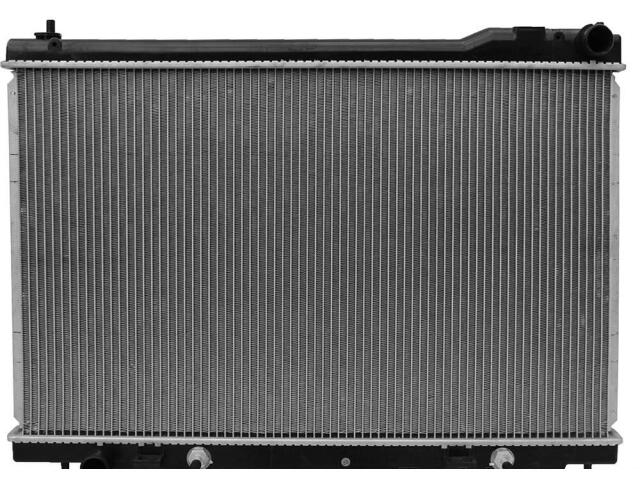

Radiator
OSC : 2671

Core Height (IN): 17 11/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 28 11/16
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/8
Inlet Header Length (IN): 29 15/16
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 3/8
Outlet Header Length (IN): 29 15/16
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 14 3/4
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 6

适用车型

INFINITI (1)

OE号码

品牌	号码
OE	21460CM81*

品牌	号码
OE	2146CG20*

品牌	号码
OE	RAD267*
