OSC
2587

第三方数据OSC : 2587

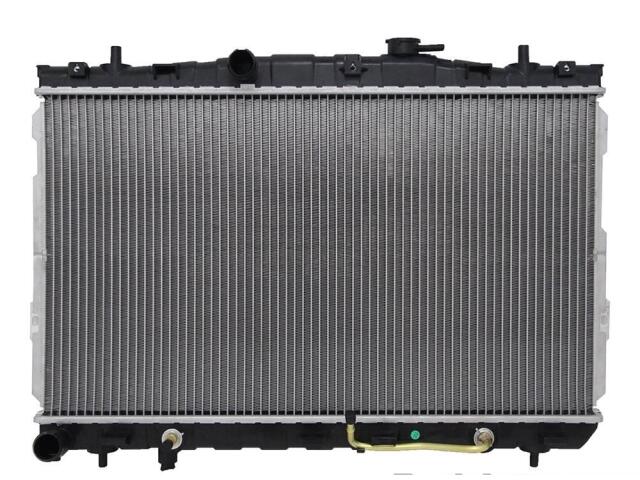

Radiator
OSC : 2587

Core Height (IN): 14 3/4
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 7/8
Core Thickness (MM): 22
Core Width (IN): 25 7/8
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 26 9/16
Inlet Header Width (IN): 1 15/16
Outlet Diameter (IN): 1 5/16
Outlet Header Length (IN): 26 9/16
Outlet Header Width (IN): 1 15/16
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 7/8
Transmission Oil Cooler Distance between Fittings (IN): 14 9/16
Transmission Oil Cooler Included: Yes

适用车型

HYUNDAI (1)

OE号码

品牌	号码
OE	253102C00*

品牌	号码
OE	253102D00*

品牌	号码
OE	RAD258*
