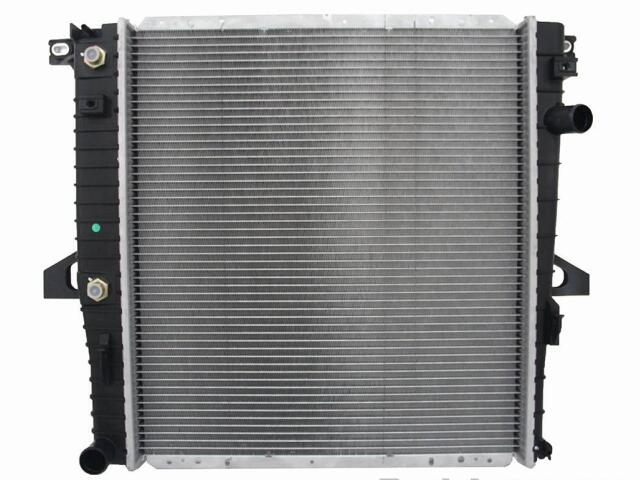

Radiator
OSC : 2470

Core Height (IN): 20 13/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 23 5/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 1/2
Inlet Header Length (IN): 23 7/8
Inlet Header Width (IN): 3 3/16
Outlet Diameter (IN): 1 1/2
Outlet Header Length (IN): 23 7/8
Outlet Header Width (IN): 3 3/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 12
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 6

适用车型

FORD (1)

MAZDA (1)

OE号码

品牌	号码
OE	1L5H8005G*
OE	1L5H8005H*
OE	1L5Z8005G*

品牌	号码
OE	1L5Z8005H*
OE	6L5Z8005A*

品牌	号码
OE	6L5Z8005B*
OE	RAD247*
