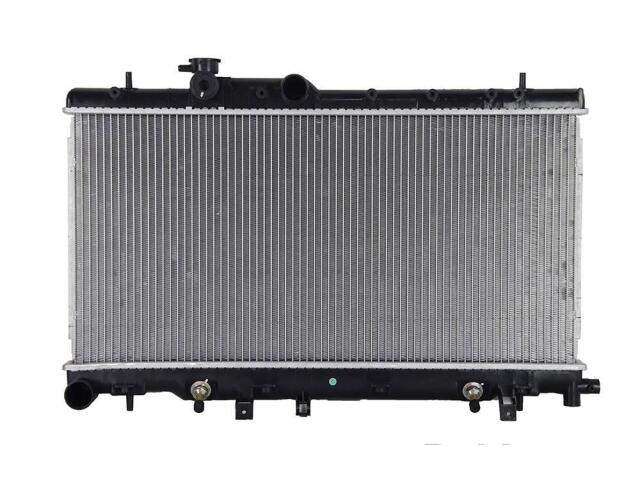

Radiator
OSC : 2464

Core Height (IN): 13 3/8
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 27 1/16
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 1/2
Inlet Header Length (IN): 28 3/16
Inlet Header Width (IN): 1 15/16
Outlet Diameter (IN): 1 1/2
Outlet Header Length (IN): 28 3/16
Outlet Header Width (IN): 2 3/8
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 3/4
Transmission Oil Cooler Distance between Fittings (IN): 14 3/4
Transmission Oil Cooler Included: Yes

适用车型

SUBARU (1)

OE号码

品牌	号码
OE	45111FE15*
OE	45119FE05*

品牌	号码
OE	RAD246*

品牌	号码
OE	X4511FE15*
